Rice Parboiling Plants

The hydrothermal treatment of paddy before milling is known as parboiling process. Major benefits of parboiling process comprise of gelatinization of rice starch and hardening of rice kernel. HSF parboiled system is specially designed to leach out the Amylose molecules and diffuse them outside the granule surroundings.

Our pre-steaming (Kachhi) and post-steaming (Pakki) systems are designed in such a way that appropriate and equivalent steam temperature is maintained throughout the whole tanks. Our soaking tanks are equipped with PLC controllers so that uniform soaking is being done during the complete process in each batch.

Parboiling plants 40 to 2000 tpd. Capacity

3 stages (Kachhi and Pakki processing) for Basmati and Superfine Paddy
Pressure Parboiling for Normal, coarse & Puff rice.

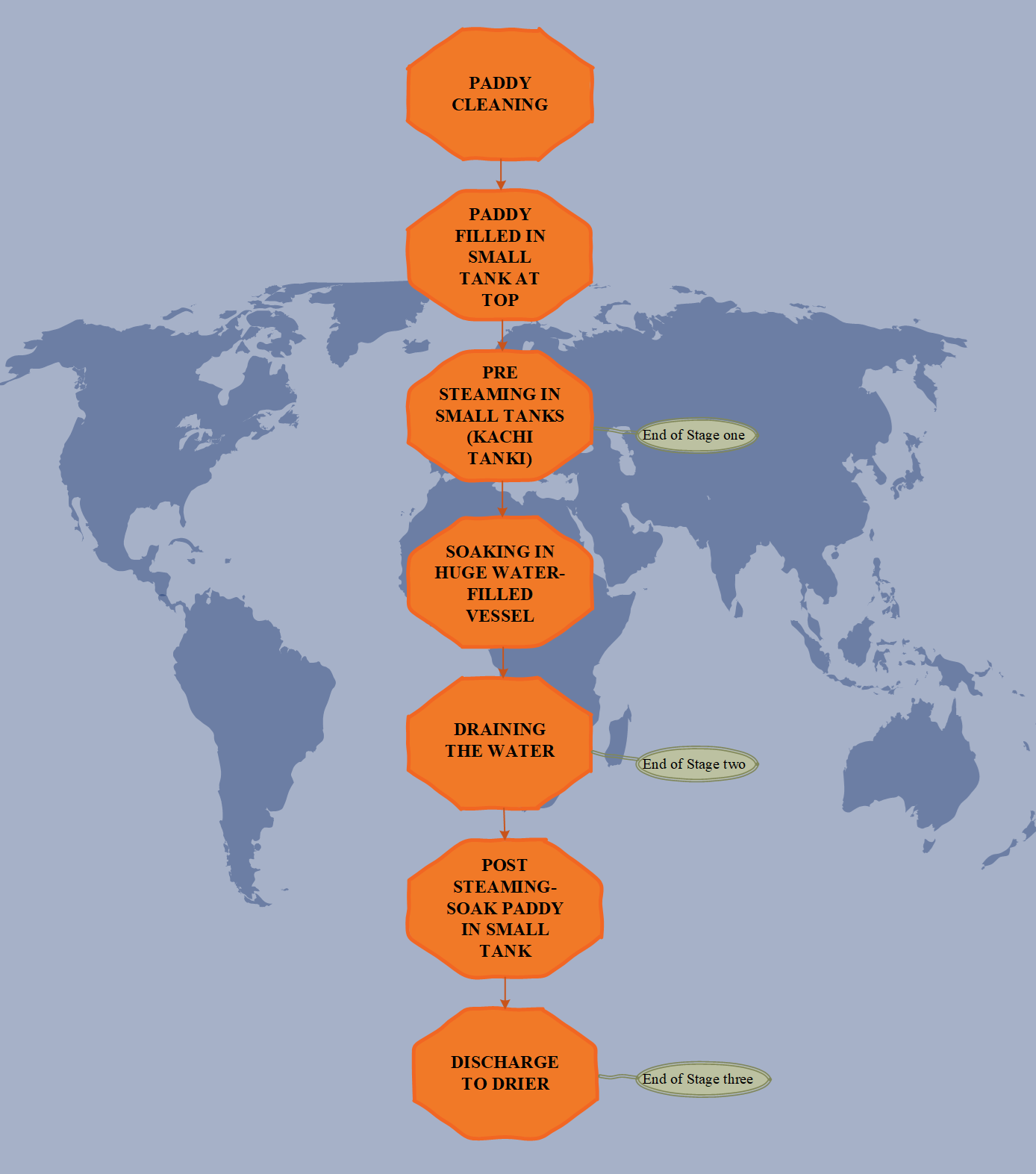

Three Stages of Parboiling

Stage One:

Pre-Steaming Stage:

Post cleaning process, paddy is directed to Pre-steaming or pre-cooking tanks, where diagonally perforated steam injectors are fitted to directly inject low pressure steam into the paddy, which therefore increases the bonding strength of paddy starch granules.

Stage Two:

Soaking Stage:

Paddy is then directed to Soaking tanks, where hydration/swelling process is initiated via circulation of hot water. This stage helps in gelatinizing the paddy via water-soluble vitamins and minerals with minimum grain swelling. This hydration process decreases the breakage susceptibility of rice during the milling process, resulting in greater head rice yield.

Stage Three:

Post Steaming Stage:

Automated online continuous soaked paddy-cooking system provides soaked paddy with continuous low-pressure steam which embeds and binds water-soluble nutrients and minerals into the endospermic layer of paddy. Online Post steaming cooker is equipped with Pneumatic Slide-gate, level sensors and Rotary type discharge mechanism along with diagonally perforated steam injectors to provide continuous cooking of soaked paddy.

Parboiling Plant Manufacturer in India | Paddy Parboiling System

Introduction

HSF (Haryana Steel Fabrication), based in Sirsa, is a leading manufacturer of parboiling plants in India. We provide complete paddy parboiling solutions designed to improve rice quality, reduce grain breakage, and enhance production efficiency. Our systems are widely used in modern rice mills for producing high-quality parboiled rice suitable for domestic and export markets.

What is Parboiling?

Parboiling is a hydrothermal process in which raw paddy is soaked, steamed, and dried before milling. This process strengthens the grain, improves nutritional value, and reduces breakage during milling.

Main Steps:

Soaking of paddy
Steaming under controlled conditions
Drying before milling

Our Parboiling Plant Solutions

We manufacture complete parboiling systems including:

Soaking tanks
Steaming units
Drying systems
Storage and handling systems
Control systems

All components are designed for smooth and efficient plant operation.

Types of Parboiling Plants

This section is CRITICAL for SEO:

Batch Type Parboiling Plant
Suitable for small and medium rice mills
Continuous Parboiling Plant
Ideal for large-scale industrial production
Modern Automated Parboiling System
Advanced system with better efficiency and control

Key Features of Our Parboiling Plant

Uniform steaming process
High efficiency and low energy consumption
Strong steel fabrication
Easy operation and maintenance
Designed for consistent rice quality

Applications

Our parboiling plants are widely used in:

Rice mills
Paddy processing units
Export-oriented rice production

Why Choose HSF Haryana

Experienced fabrication team
Durable steel structures
Custom plant design
Based in Sirsa, Haryana
Serving all over India

Turnkey Parboiling Plant Solutions

We provide complete turnkey services including:

Plant design and layout
Fabrication and installation
Testing and commissioning

Get a Quote

Looking for a reliable parboiling plant manufacturer?
Contact HSF Haryana Steel Fabrication for customized solutions.
